Corr_3PCF: Standard and Multipole Three-Point Statistics#

This notebook continues from quick_start.ipynb: its standard configurations reuse the saved base field and particle companion produced there. It develops the 3PCF workflow in four stages:

  1. run the standard 3PCF through the high-level task interface

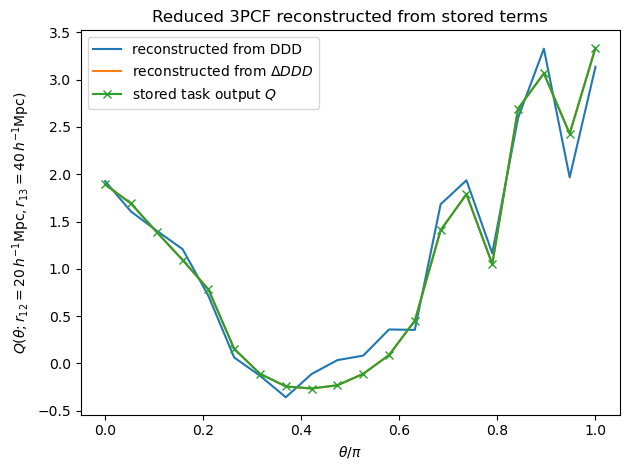

  2. reconstruct the same estimator from the lower-level field operations

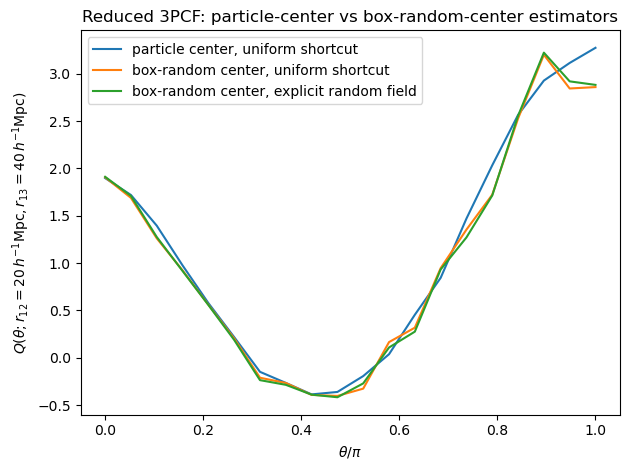

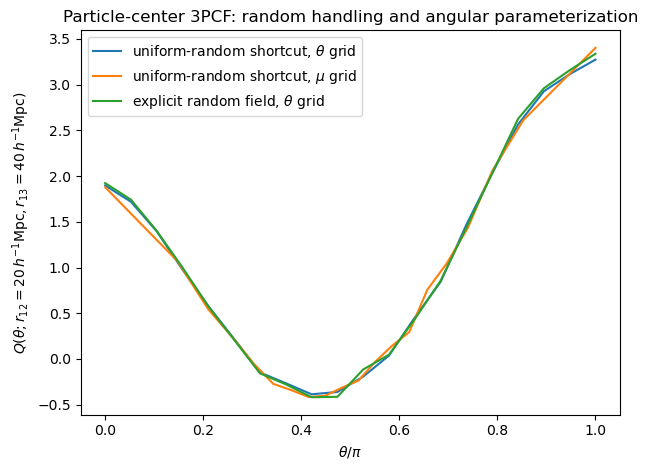

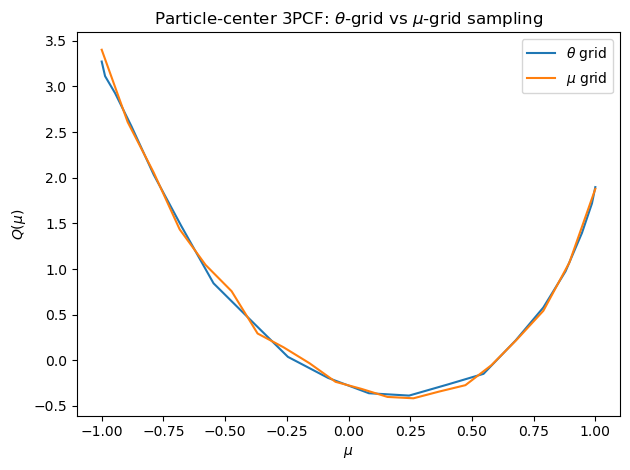

  3. diagnose the effects of random handling, center choice, and angular sampling

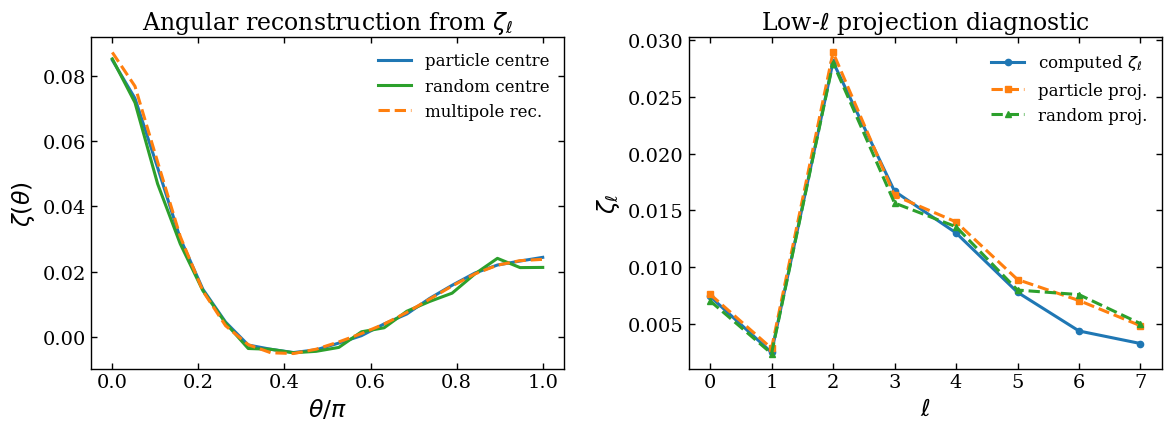

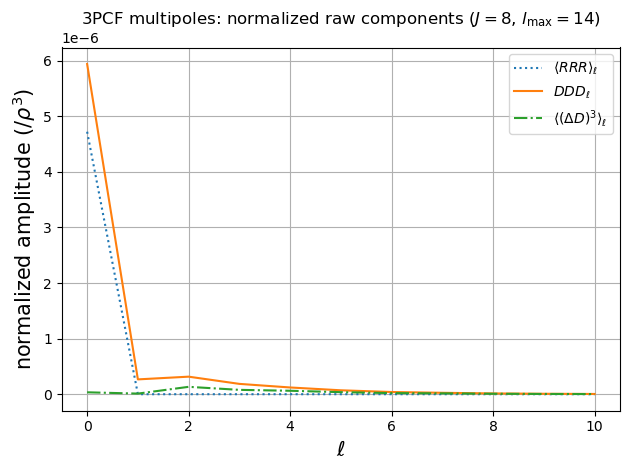

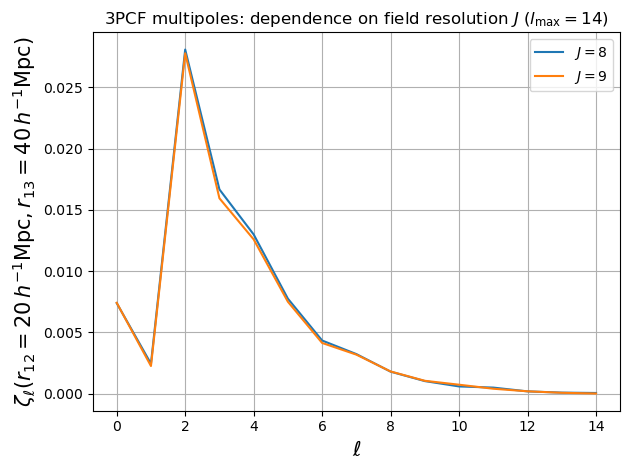

  4. inspect the multipole representation and its consistency with the angular 3PCF

Core idea#

PyHermes evaluates the field values at the three vertices of each triangle, averages their product over many rotations and centers, and then forms the reduced statistic Q = zeta / zeta_H. The choice of center sampling leads to the two main estimator styles used below: particle centers and box-random centers.

[1]:

from pyhermes.theory.corr3pcf import Corr_3PCF
from pyhermes.param.parambase import read_param
from pyhermes.utils.sampling import random_box_positions
from pyhermes.io import WindowFunc, SFCField, Corr3PCFData, Corr3PCFMultipoleData
import matplotlib.pyplot as plt
import numpy as np

from pathlib import Path
import os
cwd = Path.cwd().resolve()
if cwd.name == "notebooks" and cwd.parent.name == "examples":
    examples_dir = cwd.parent
elif cwd.name == "examples":
    examples_dir = cwd
elif (cwd / "examples").is_dir():
    examples_dir = cwd / "examples"
else:
    raise RuntimeError("Run this notebook from the project root, examples/, or examples/notebooks/.")
os.chdir(examples_dir)
print(f"Working directory: {Path.cwd()}")

figs_dir = Path("figs")
figs_dir.mkdir(exist_ok=True)

Working directory: /Users/xutengpeng/xutp/PycharmProjects/PyHermes/examples

1. Standard 3PCF workflows#

The standard task is controlled by the triangle side lengths, the angular sampling, the number of random rotations, the center strategy, and the smoothing windows applied to its vertex fields.

Minimal YAML Shapes#

For the standard reduced 3PCF, the minimal shape fixes the field inputs, triangle side lengths, angular sampling, center strategy, and products:

Corr_3PCF:
   sfc_field: "./output/quijote8000_snap004_sfc.pkl"
   random: "uniform"
   window:
      type: "sphere"
      len_args:
         R: 5
   r12: 20.0
   r13: 40.0
   theta:
      n_theta: 20
   n_rot: 20
   center: "particle"
   products: ["ddd", "Q"]
   threads: 2
   fout_path: "./output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl"

For random box centers, switch the center strategy and provide the number of box centers:

Corr_3PCF:
   center: "box_random"
   n_box_centers: 1000000

Command-line entry point#

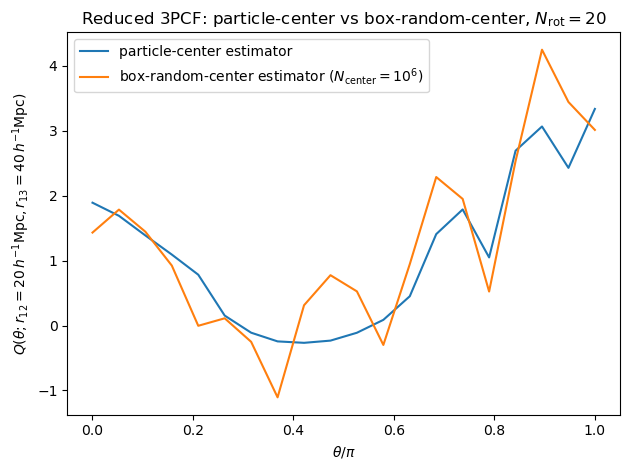

The first two runs use the standard driver script with two different center choices: particle centers and random box centers.

[2]:

! mpirun -np 4 python ./scripts/run_3pcf.py ./configs/param_3pcf_pcenter_nrot20.yaml

15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Reading configure file: './configs/param_3pcf_pcenter_nrot20.yaml'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Input parameter file format is YAML
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Set default parameters of module <theory> ...
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.sfc_field' from 'empty' to './output/quijote8000_snap004_sfc.pkl'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.random' from 'None' to 'uniform'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.window.type' from 'empty' to 'sphere'
15:13:48 - WARNING - pyhermes.param.parambase:ParamBase - Adding non-default key: 'Corr_3PCF.window.len_args.R'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.n_rot' from '100' to '20'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.center' from 'box_random' to 'particle'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.products' from 'Q' to '['ddd', 'Q']'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.threads' from '1' to '2'
15:13:48 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.fout_path' from 'empty' to './output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl'

15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF runtime configuration: running on 4 MPI ranks with 2 threads per rank
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization rule | task weight_normalization=catalog | catalog fields are converted to the task rule; derived fields are used as-is except for task='unit'.
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Preparing Corr_3PCF input fields ...
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - center=particle, r12=20.0, r13=40.0, n_rot=20, base_seed=42, threads=2
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - angle_param=theta, theta_min=0.0, theta_max=3.141592653589793, n_theta=20
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - requested_products=['ddd', 'Q'], expanded_products=['ddd', 'Q', 'zeta', 'zeta_H', 'delta_ddd', 'rrr', 'xi12', 'xi13', 'xi23', 'd_delta_dd', 'r_delta_dd']
15:13:48 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:13:48 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:13:48 - WARNING - pyhermes.pipeline.pipeline:Corr_3PCF - window1 has no effect for center='particle'; vertex 1 uses particle centres directly.
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF input compatibility check passed.
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared required parameters | J=8, box_size=1000.0, phi_resolution=1024, wavelet_mode=db2, wavelet_level=10
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared density | rho=5.96046e-08
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Particle vertex 1 ready | source=from sfc_field1.get_particle_data() | particle_count=406728 | weight_sum=1.000000e+00
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 1 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=no additional window convolution
15:13:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 2 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 3 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 1 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=derived_field | input=None | effective=as-is; task weight_normalization applies only to catalog fields unless task='unit'.
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 2 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=derived_field | input=None | effective=as-is; task weight_normalization applies only to catalog fields unless task='unit'.
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 3 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Start to calculate 3PCF (pos-parallel) ...
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Pre-3PCF setup time: 3.2450 sec
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop products: ['ddd', 'd_delta_dd']
15:13:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computing product 'ddd' | centers=particle1 | field2=data2=D2 | field3=data3=D3 | total_centers=406728 | local_centers_rank0=101682 | weight_sum=1.000000e+00
15:13:52 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'ddd' setup time: 0.3440 sec
15:13:54 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[01/20] done | mu=1.00000 | theta=0.00000 rad | elapsed=2.07 sec
15:13:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[02/20] done | mu=0.98636 | theta=0.16535 rad | elapsed=1.67 sec
15:13:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[03/20] done | mu=0.94582 | theta=0.33069 rad | elapsed=3.13 sec
15:14:01 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[04/20] done | mu=0.87947 | theta=0.49604 rad | elapsed=2.36 sec
15:14:02 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[05/20] done | mu=0.78914 | theta=0.66139 rad | elapsed=1.08 sec
15:14:03 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[06/20] done | mu=0.67728 | theta=0.82673 rad | elapsed=1.04 sec
15:14:04 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[07/20] done | mu=0.54695 | theta=0.99208 rad | elapsed=1.01 sec
15:14:05 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[08/20] done | mu=0.40170 | theta=1.15743 rad | elapsed=1.04 sec
15:14:06 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[09/20] done | mu=0.24549 | theta=1.32278 rad | elapsed=1.01 sec
15:14:07 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[10/20] done | mu=0.08258 | theta=1.48812 rad | elapsed=0.99 sec
15:14:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[11/20] done | mu=-0.08258 | theta=1.65347 rad | elapsed=1.00 sec
15:14:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[12/20] done | mu=-0.24549 | theta=1.81882 rad | elapsed=1.08 sec
15:14:10 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[13/20] done | mu=-0.40170 | theta=1.98416 rad | elapsed=1.02 sec
15:14:11 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[14/20] done | mu=-0.54695 | theta=2.14951 rad | elapsed=0.95 sec
15:14:12 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[15/20] done | mu=-0.67728 | theta=2.31486 rad | elapsed=1.03 sec
15:14:13 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[16/20] done | mu=-0.78914 | theta=2.48020 rad | elapsed=0.99 sec
15:14:14 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[17/20] done | mu=-0.87947 | theta=2.64555 rad | elapsed=1.04 sec
15:14:15 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[18/20] done | mu=-0.94582 | theta=2.81090 rad | elapsed=1.31 sec
15:14:17 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[19/20] done | mu=-0.98636 | theta=2.97625 rad | elapsed=1.10 sec
15:14:17 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=ddd | mu[20/20] done | mu=-1.00000 | theta=3.14159 rad | elapsed=0.96 sec
15:14:18 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'ddd' finished in 26.5504 sec
15:14:18 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computing product 'd_delta_dd' | centers=particle1 | field2=delta2=D2-R2 | field3=delta3=D3-R3 | total_centers=406728 | local_centers_rank0=101682 | weight_sum=1.000000e+00
15:14:19 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'd_delta_dd' setup time: 1.0208 sec
15:14:20 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[01/20] done | mu=1.00000 | theta=0.00000 rad | elapsed=1.49 sec
15:14:21 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[02/20] done | mu=0.98636 | theta=0.16535 rad | elapsed=1.18 sec
15:14:23 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[03/20] done | mu=0.94582 | theta=0.33069 rad | elapsed=1.33 sec
15:14:24 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[04/20] done | mu=0.87947 | theta=0.49604 rad | elapsed=1.62 sec
15:14:26 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[05/20] done | mu=0.78914 | theta=0.66139 rad | elapsed=1.18 sec
15:14:27 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[06/20] done | mu=0.67728 | theta=0.82673 rad | elapsed=1.18 sec
15:14:28 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[07/20] done | mu=0.54695 | theta=0.99208 rad | elapsed=1.31 sec
15:14:30 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[08/20] done | mu=0.40170 | theta=1.15743 rad | elapsed=2.34 sec
15:14:32 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[09/20] done | mu=0.24549 | theta=1.32278 rad | elapsed=1.31 sec
15:14:33 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[10/20] done | mu=0.08258 | theta=1.48812 rad | elapsed=1.24 sec
15:14:34 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[11/20] done | mu=-0.08258 | theta=1.65347 rad | elapsed=1.22 sec
15:14:36 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[12/20] done | mu=-0.24549 | theta=1.81882 rad | elapsed=1.73 sec
15:14:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[13/20] done | mu=-0.40170 | theta=1.98416 rad | elapsed=1.51 sec
15:14:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[14/20] done | mu=-0.54695 | theta=2.14951 rad | elapsed=1.07 sec
15:14:40 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[15/20] done | mu=-0.67728 | theta=2.31486 rad | elapsed=1.01 sec
15:14:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[16/20] done | mu=-0.78914 | theta=2.48020 rad | elapsed=1.42 sec
15:14:42 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[17/20] done | mu=-0.87947 | theta=2.64555 rad | elapsed=1.11 sec
15:14:43 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[18/20] done | mu=-0.94582 | theta=2.81090 rad | elapsed=1.11 sec
15:14:44 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[19/20] done | mu=-0.98636 | theta=2.97625 rad | elapsed=1.15 sec
15:14:45 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[20/20] done | mu=-1.00000 | theta=3.14159 rad | elapsed=0.73 sec
15:14:45 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'd_delta_dd' finished in 27.3093 sec
15:14:45 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 3PCF main loop time: 53.8601 sec
15:14:45 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop finished, post-processing on rank 0 ...
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 2PCF timing | xi12=1.49 sec | xi13=0.56 sec | xi23=8.38 sec
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed rrr from pair cache and random1 density.
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed r_delta_dd from xi23 and rrr for particle centre with uniform random vertex 1.
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed delta_ddd from d_delta_dd and r_delta_dd for particle center.
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta from delta_ddd and rrr.
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta_H from xi12/xi13/xi23.
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed Q from zeta and zeta_H.
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for 3PCF: 64.2853 sec
15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Saving 3PCF result to output file ...
15:14:55 - WARNING - pyhermes.io.funcs:check_fout - Output file './output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl' already exists and will be overwritten (overwrite=True).
15:14:55 - INFO - pyhermes.io.base:Corr3PCFData - Writing 3PCF data to ---> ./output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl <---

15:14:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for task: 67.5348 sec


[3]:

! mpirun -np 4 python ./scripts/run_3pcf.py ./configs/param_3pcf_rcenter_nrot20.yaml

15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Reading configure file: './configs/param_3pcf_rcenter_nrot20.yaml'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Input parameter file format is YAML
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Set default parameters of module <theory> ...
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.sfc_field' from 'empty' to './output/quijote8000_snap004_sfc.pkl'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.random' from 'None' to 'uniform'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.window2.type' from 'empty' to 'sphere'
15:14:58 - WARNING - pyhermes.param.parambase:ParamBase - Adding non-default key: 'Corr_3PCF.window2.len_args.R'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.window3.type' from 'empty' to 'sphere'
15:14:58 - WARNING - pyhermes.param.parambase:ParamBase - Adding non-default key: 'Corr_3PCF.window3.len_args.R'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.n_rot' from '100' to '20'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.n_box_centers' from '5000000' to '1000000'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.threads' from '1' to '2'
15:14:58 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.fout_path' from 'empty' to './output/quijote8000_snap004_3pcf_rcenter_nrot20.pkl'

15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF runtime configuration: running on 4 MPI ranks with 2 threads per rank
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization rule | task weight_normalization=catalog | catalog fields are converted to the task rule; derived fields are used as-is except for task='unit'.
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Preparing Corr_3PCF input fields ...
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - center=box_random, r12=20.0, r13=40.0, n_rot=20, base_seed=42, threads=2
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - angle_param=theta, theta_min=0.0, theta_max=3.141592653589793, n_theta=20
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - requested_products=['Q'], expanded_products=['Q', 'zeta', 'zeta_H', 'delta_ddd', 'rrr', 'xi12', 'xi13', 'xi23']
15:14:58 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:14:58 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF input compatibility check passed.
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared required parameters | J=8, box_size=1000.0, phi_resolution=1024, wavelet_mode=db2, wavelet_level=10
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared density | rho=5.96046e-08
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 1 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=no additional window convolution
15:14:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 2 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 3 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 1 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=derived_field | input=None | effective=as-is; task weight_normalization applies only to catalog fields unless task='unit'.
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 2 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=derived_field | input=None | effective=as-is; task weight_normalization applies only to catalog fields unless task='unit'.
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 3 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Start to calculate 3PCF (pos-parallel) ...
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Pre-3PCF setup time: 2.5349 sec
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop products: ['delta_ddd']
15:15:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computing product 'delta_ddd' | centers=box_random | field2=delta2=D2-R2 | field3=delta3=D3-R3 | total_centers=1000000 | local_centers_rank0=250000
15:15:01 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'delta_ddd' setup time: 0.3179 sec
15:15:17 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[01/20] done | mu=1.00000 | theta=0.00000 rad | elapsed=15.95 sec
15:15:27 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[02/20] done | mu=0.98636 | theta=0.16535 rad | elapsed=10.34 sec
15:15:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[03/20] done | mu=0.94582 | theta=0.33069 rad | elapsed=9.86 sec
15:15:43 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[04/20] done | mu=0.87947 | theta=0.49604 rad | elapsed=6.70 sec
15:15:50 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[05/20] done | mu=0.78914 | theta=0.66139 rad | elapsed=6.82 sec
15:16:01 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[06/20] done | mu=0.67728 | theta=0.82673 rad | elapsed=10.94 sec
15:16:14 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[07/20] done | mu=0.54695 | theta=0.99208 rad | elapsed=12.54 sec
15:16:24 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[08/20] done | mu=0.40170 | theta=1.15743 rad | elapsed=10.30 sec
15:16:30 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[09/20] done | mu=0.24549 | theta=1.32278 rad | elapsed=5.97 sec
15:16:36 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[10/20] done | mu=0.08258 | theta=1.48812 rad | elapsed=6.04 sec
15:16:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[11/20] done | mu=-0.08258 | theta=1.65347 rad | elapsed=4.70 sec
15:16:46 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[12/20] done | mu=-0.24549 | theta=1.81882 rad | elapsed=4.70 sec
15:16:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[13/20] done | mu=-0.40170 | theta=1.98416 rad | elapsed=5.08 sec
15:16:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[14/20] done | mu=-0.54695 | theta=2.14951 rad | elapsed=4.09 sec
15:16:59 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[15/20] done | mu=-0.67728 | theta=2.31486 rad | elapsed=4.34 sec
15:17:06 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[16/20] done | mu=-0.78914 | theta=2.48020 rad | elapsed=6.70 sec
15:17:13 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[17/20] done | mu=-0.87947 | theta=2.64555 rad | elapsed=6.86 sec
15:17:19 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[18/20] done | mu=-0.94582 | theta=2.81090 rad | elapsed=6.01 sec
15:17:23 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[19/20] done | mu=-0.98636 | theta=2.97625 rad | elapsed=4.10 sec
15:17:25 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=delta_ddd | mu[20/20] done | mu=-1.00000 | theta=3.14159 rad | elapsed=2.45 sec
15:17:25 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'delta_ddd' finished in 145.1921 sec
15:17:25 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 3PCF main loop time: 145.1947 sec
15:17:25 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop finished, post-processing on rank 0 ...
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 2PCF timing | xi12=1.96 sec | xi13=0.60 sec | xi23=9.60 sec
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed rrr from pair cache and random1 density.
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta from delta_ddd and rrr.
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta_H from xi12/xi13/xi23.
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed Q from zeta and zeta_H.
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for 3PCF: 157.3806 sec
15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Saving 3PCF result to output file ...
15:17:38 - WARNING - pyhermes.io.funcs:check_fout - Output file './output/quijote8000_snap004_3pcf_rcenter_nrot20.pkl' already exists and will be overwritten (overwrite=True).
15:17:38 - INFO - pyhermes.io.base:Corr3PCFData - Writing 3PCF data to ---> ./output/quijote8000_snap004_3pcf_rcenter_nrot20.pkl <---

15:17:38 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for task: 159.9188 sec

Compare particle-center and box-random-center saved outputs#

The next cell reloads both results and compares their reduced 3PCF curves directly. This is the fastest way to see how the estimator choice changes the measured Q(theta).

[4]:

corr3pcf_pcent = Corr3PCFData(data_path='./output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl')
corr3pcf_rcent = Corr3PCFData(data_path='./output/quijote8000_snap004_3pcf_rcenter_nrot20.pkl')
plt.plot(corr3pcf_pcent.theta/np.pi, corr3pcf_pcent.Q, label='particle-center estimator')
plt.plot(corr3pcf_rcent.theta/np.pi, corr3pcf_rcent.Q, label=r'box-random-center estimator ($N_{\rm center}=10^6$)')
plt.xlabel(r"$\theta/\pi$")
plt.ylabel(r"$Q(\theta; r_{12}=20\,h^{-1}\mathrm{Mpc}, r_{13}=40\,h^{-1}\mathrm{Mpc})$")
plt.legend()
plt.title(r'Reduced 3PCF: particle-center vs box-random-center, $N_{\rm rot}=20$')
plt.tight_layout()
plt.show()

15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl <---
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['ddd', 'rrr', 'd_delta_dd', 'r_delta_dd', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_rcenter_nrot20.pkl <---
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:17:39 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['rrr', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
../_images/notebooks_corr3pcf_8_1.png

Config-driven Python API#

This version keeps the YAML config in charge but returns the result directly to the notebook, which is useful for quick parameter scans.

[5]:

corr3pcf_params = read_param('./configs/param_3pcf_pcenter_nrot20.yaml')
task = Corr_3PCF(param_task=corr3pcf_params)
task.threads = 8
task.products = 'Q'
corr3pcf = task.run(save_result=False)

15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Reading configure file: './configs/param_3pcf_pcenter_nrot20.yaml'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Input parameter file format is YAML
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Set default parameters of module <theory> ...
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.sfc_field' from 'empty' to './output/quijote8000_snap004_sfc.pkl'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.random' from 'None' to 'uniform'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.window.type' from 'empty' to 'sphere'
15:17:39 - WARNING - pyhermes.param.parambase:ParamBase - Adding non-default key: 'Corr_3PCF.window.len_args.R'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.n_rot' from '100' to '20'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.center' from 'box_random' to 'particle'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.products' from 'Q' to '['ddd', 'Q']'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.threads' from '1' to '2'
15:17:39 - INFO - pyhermes.param.parambase:ParamBase - Default 'Corr_3PCF.fout_path' from 'empty' to './output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl'

15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF runtime configuration: running on 1 MPI ranks with 8 threads per rank
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization rule | task weight_normalization=catalog | catalog fields are converted to the task rule; derived fields are used as-is except for task='unit'.
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Preparing Corr_3PCF input fields ...
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - center=particle, r12=20.0, r13=40.0, n_rot=20, base_seed=42, threads=8
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - angle_param=theta, theta_min=0.0, theta_max=3.141592653589793, n_theta=20
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - requested_products=Q, expanded_products=['Q', 'zeta', 'zeta_H', 'delta_ddd', 'rrr', 'xi12', 'xi13', 'xi23', 'd_delta_dd', 'r_delta_dd']
15:17:39 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:17:39 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:17:39 - WARNING - pyhermes.pipeline.pipeline:Corr_3PCF - window1 has no effect for center='particle'; vertex 1 uses particle centres directly.
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF input compatibility check passed.
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared required parameters | J=8, box_size=1000.0, phi_resolution=1024, wavelet_mode=db2, wavelet_level=10
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared density | rho=5.96046e-08
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Particle vertex 1 ready | source=from sfc_field1.get_particle_data() | particle_count=406728 | weight_sum=1.000000e+00
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 1 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=no additional window convolution
15:17:39 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 2 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 3 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 1 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=derived_field | input=None | effective=as-is; task weight_normalization applies only to catalog fields unless task='unit'.
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 2 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=derived_field | input=None | effective=as-is; task weight_normalization applies only to catalog fields unless task='unit'.
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 3 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Start to calculate 3PCF (pos-parallel) ...
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Pre-3PCF setup time: 2.0264 sec
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop products: ['d_delta_dd']
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computing product 'd_delta_dd' | centers=particle1 | field2=delta2=D2-R2 | field3=delta3=D3-R3 | total_centers=406728 | local_centers_rank0=406728 | weight_sum=1.000000e+00
15:17:41 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'd_delta_dd' setup time: 0.0367 sec
15:17:43 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[01/20] done | mu=1.00000 | theta=0.00000 rad | elapsed=1.47 sec
15:17:44 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[02/20] done | mu=0.98636 | theta=0.16535 rad | elapsed=1.05 sec
15:17:45 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[03/20] done | mu=0.94582 | theta=0.33069 rad | elapsed=1.25 sec
15:17:46 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[04/20] done | mu=0.87947 | theta=0.49604 rad | elapsed=1.14 sec
15:17:48 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[05/20] done | mu=0.78914 | theta=0.66139 rad | elapsed=1.37 sec
15:17:49 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[06/20] done | mu=0.67728 | theta=0.82673 rad | elapsed=1.16 sec
15:17:50 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[07/20] done | mu=0.54695 | theta=0.99208 rad | elapsed=1.03 sec
15:17:51 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[08/20] done | mu=0.40170 | theta=1.15743 rad | elapsed=1.03 sec
15:17:52 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[09/20] done | mu=0.24549 | theta=1.32278 rad | elapsed=0.96 sec
15:17:53 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[10/20] done | mu=0.08258 | theta=1.48812 rad | elapsed=0.87 sec
15:17:54 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[11/20] done | mu=-0.08258 | theta=1.65347 rad | elapsed=0.90 sec
15:17:54 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[12/20] done | mu=-0.24549 | theta=1.81882 rad | elapsed=0.90 sec
15:17:55 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[13/20] done | mu=-0.40170 | theta=1.98416 rad | elapsed=0.96 sec
15:17:56 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[14/20] done | mu=-0.54695 | theta=2.14951 rad | elapsed=0.90 sec
15:17:57 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[15/20] done | mu=-0.67728 | theta=2.31486 rad | elapsed=0.89 sec
15:17:58 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[16/20] done | mu=-0.78914 | theta=2.48020 rad | elapsed=0.89 sec
15:17:59 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[17/20] done | mu=-0.87947 | theta=2.64555 rad | elapsed=0.88 sec
15:18:00 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[18/20] done | mu=-0.94582 | theta=2.81090 rad | elapsed=0.88 sec
15:18:01 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[19/20] done | mu=-0.98636 | theta=2.97625 rad | elapsed=0.88 sec
15:18:02 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[20/20] done | mu=-1.00000 | theta=3.14159 rad | elapsed=0.89 sec
15:18:02 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'd_delta_dd' finished in 20.3653 sec
15:18:02 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 3PCF main loop time: 20.3659 sec
15:18:02 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop finished, post-processing on rank 0 ...
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 2PCF timing | xi12=0.99 sec | xi13=0.46 sec | xi23=4.61 sec
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed rrr from pair cache and random1 density.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed r_delta_dd from xi23 and rrr for particle centre with uniform random vertex 1.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed delta_ddd from d_delta_dd and r_delta_dd for particle center.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta from delta_ddd and rrr.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta_H from xi12/xi13/xi23.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed Q from zeta and zeta_H.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for 3PCF: 26.4201 sec

15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for task: 28.4468 sec

Task object overrides#

These cells show a mixed-object workflow in which data fields, random fields, and windows can be supplied either as loaded objects or as paths. This is often the most practical level for custom experiments.

[6]:

D = SFCField(data_path='./output/quijote8000_snap004_sfc.pkl', threads=8)
random = SFCField(data_path='./output/random_sfc.pkl', threads=8)
win_params_sph5 = {"type": "sphere", "len_args": {"R": 5}}
filter_sph5 = WindowFunc(win_params_sph5, D.sfc_info, threads=8)

15:18:08 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:18:08 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1
15:18:08 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/random_sfc.pkl <---
15:18:08 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -2.192e-07, Max = 9.48e-07, Mean = 5.96e-08, Sum = 1

[7]:

task = Corr_3PCF()
task.sfc_field1 = D
task.sfc_field2 = "./output/quijote8000_snap004_sfc.pkl"
task.sfc_field3 = "./output/quijote8000_snap004_sfc.pkl"
task.random1 = "uniform"
task.random2 = "./output/random_sfc.pkl"
task.random3 = random
task.window2 = win_params_sph5
task.window3 = filter_sph5
task.r12 = 20.0
task.r13 = 40.0
task.n_theta = 20
task.n_rot = 20
task.center = "particle"
# task.particle_pos1 = D.get_particle_data()['pos']
# task.random_pos1 = random_box_positions(count=1000000, box_size=1000, seed=42)
task.products = "Q"
task.threads = 8
corr3pcf1 = task.run(save_result=False)

15:18:08 - INFO - pyhermes.param.parambase:ParamBase - Set default parameters of module <theory> ...

15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF runtime configuration: running on 1 MPI ranks with 8 threads per rank
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization rule | task weight_normalization=catalog | catalog fields are converted to the task rule; derived fields are used as-is except for task='unit'.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Preparing Corr_3PCF input fields ...
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - center=particle, r12=20.0, r13=40.0, n_rot=20, base_seed=42, threads=8
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - angle_param=theta, theta_min=0.0, theta_max=3.141592653589793, n_theta=20
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - requested_products=Q, expanded_products=['Q', 'zeta', 'zeta_H', 'delta_ddd', 'rrr', 'xi12', 'xi13', 'xi23', 'd_delta_dd', 'r_delta_dd']
15:18:08 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:18:08 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1
15:18:08 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/random_sfc.pkl <---
15:18:08 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -2.192e-07, Max = 9.48e-07, Mean = 5.96e-08, Sum = 1
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Corr_3PCF input compatibility check passed.
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared required parameters | J=8, box_size=1000.0, phi_resolution=1024, wavelet_mode=db2, wavelet_level=10
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Shared density | rho=5.96046e-08
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Particle vertex 1 ready | source=from sfc_field1.get_particle_data() | particle_count=406728 | weight_sum=1.000000e+00
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 1 ready | source=provided sfc_field1 | window=no additional window convolution
15:18:08 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 2 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field vertex 3 ready | source=path=./output/quijote8000_snap004_sfc.pkl | window=provided WindowFunc instance
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 1 ready | source=uniform random density | window=uniform shortcut | rho=5.96046e-08
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 2 ready | source=path=./output/random_sfc.pkl | window=provided window dict | applying window type=sphere args={'R': 5}
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Field weight normalization | field_kind=catalog_field | input=catalog | task=catalog | effective=catalog
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Random vertex 3 ready | source=provided random3 | window=provided WindowFunc instance
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Start to calculate 3PCF (pos-parallel) ...
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Pre-3PCF setup time: 1.2761 sec
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop products: ['d_delta_dd']
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computing product 'd_delta_dd' | centers=particle1 | field2=delta2=D2-R2 | field3=delta3=D3-R3 | total_centers=406728 | local_centers_rank0=406728 | weight_sum=1.000000e+00
15:18:09 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'd_delta_dd' setup time: 0.0510 sec
15:18:10 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[01/20] done | mu=1.00000 | theta=0.00000 rad | elapsed=0.87 sec
15:18:11 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[02/20] done | mu=0.98636 | theta=0.16535 rad | elapsed=0.89 sec
15:18:12 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[03/20] done | mu=0.94582 | theta=0.33069 rad | elapsed=0.90 sec
15:18:13 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[04/20] done | mu=0.87947 | theta=0.49604 rad | elapsed=0.90 sec
15:18:14 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[05/20] done | mu=0.78914 | theta=0.66139 rad | elapsed=0.87 sec
15:18:15 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[06/20] done | mu=0.67728 | theta=0.82673 rad | elapsed=0.85 sec
15:18:16 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[07/20] done | mu=0.54695 | theta=0.99208 rad | elapsed=0.86 sec
15:18:16 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[08/20] done | mu=0.40170 | theta=1.15743 rad | elapsed=0.87 sec
15:18:17 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[09/20] done | mu=0.24549 | theta=1.32278 rad | elapsed=0.87 sec
15:18:18 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[10/20] done | mu=0.08258 | theta=1.48812 rad | elapsed=0.94 sec
15:18:19 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[11/20] done | mu=-0.08258 | theta=1.65347 rad | elapsed=0.86 sec
15:18:20 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[12/20] done | mu=-0.24549 | theta=1.81882 rad | elapsed=0.99 sec
15:18:21 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[13/20] done | mu=-0.40170 | theta=1.98416 rad | elapsed=0.86 sec
15:18:22 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[14/20] done | mu=-0.54695 | theta=2.14951 rad | elapsed=0.86 sec
15:18:23 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[15/20] done | mu=-0.67728 | theta=2.31486 rad | elapsed=0.86 sec
15:18:24 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[16/20] done | mu=-0.78914 | theta=2.48020 rad | elapsed=0.86 sec
15:18:25 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[17/20] done | mu=-0.87947 | theta=2.64555 rad | elapsed=1.11 sec
15:18:26 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[18/20] done | mu=-0.94582 | theta=2.81090 rad | elapsed=1.13 sec
15:18:27 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[19/20] done | mu=-0.98636 | theta=2.97625 rad | elapsed=0.99 sec
15:18:28 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF -  product=d_delta_dd | mu[20/20] done | mu=-1.00000 | theta=3.14159 rad | elapsed=0.92 sec
15:18:28 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Product 'd_delta_dd' finished in 18.3337 sec
15:18:28 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 3PCF main loop time: 18.3346 sec
15:18:28 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Main 3PCF loop finished, post-processing on rank 0 ...
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - 2PCF timing | xi12=0.55 sec | xi13=0.30 sec | xi23=8.10 sec
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed rrr from pair cache and random1 density.
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed r_delta_dd from xi23 and rrr for particle centre with uniform random vertex 1.
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed delta_ddd from d_delta_dd and r_delta_dd for particle center.
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta from delta_ddd and rrr.
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed zeta_H from xi12/xi13/xi23.
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - Computed Q from zeta and zeta_H.
15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for 3PCF: 27.2792 sec

15:18:37 - INFO - pyhermes.pipeline.pipeline:Corr_3PCF - The time for task: 28.5555 sec

Reconstruct Q from stored components#

The saved 3PCF object contains the intermediate pieces needed to rebuild the reduced statistic. The next cell makes that relationship explicit.

[8]:

corr3pcf = Corr3PCFData(data_path="./output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl")
Q1 = (corr3pcf.ddd / corr3pcf.rrr - 1 - corr3pcf.xi12 - corr3pcf.xi23 - corr3pcf.xi13)/corr3pcf.zeta_H
Q2 = corr3pcf.delta_ddd / corr3pcf.rrr / corr3pcf.zeta_H

plt.plot(corr3pcf.theta/np.pi, Q1, label='reconstructed from DDD')
plt.plot(corr3pcf.theta/np.pi, Q2, label=r'reconstructed from $\Delta DDD$')
plt.plot(corr3pcf.theta/np.pi, corr3pcf.Q, label='stored task output $Q$', marker="x")
plt.xlabel(r'$\theta/\pi$')
plt.ylabel(r'$Q(\theta; r_{12}=20\,h^{-1}\mathrm{Mpc}, r_{13}=40\,h^{-1}\mathrm{Mpc})$')
plt.title(r'Reduced 3PCF reconstructed from stored terms')
plt.legend()
plt.tight_layout()
plt.show()

15:18:37 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_pcenter_nrot20.pkl <---
15:18:37 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:18:37 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:18:37 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['ddd', 'rrr', 'd_delta_dd', 'r_delta_dd', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
../_images/notebooks_corr3pcf_15_1.png

2. Low-level reconstruction of Q#

After the high-level workflow, this section steps outside the task wrapper and reconstructs the same statistic with the lower-level field operations. It makes the particle-center and box-random-center estimators explicit before the saved-run diagnostics in the next section.

[9]:

from pyhermes.utils.corr3pcf_kernels import (
    third_side, estimate_triplet_product_particle_centers, estimate_triplet_product_box_random_centers
)
from pyhermes.utils.sampling import random_box_positions
from pyhermes.theory.corr2pcf import compute_pair_product_at_sample

Field definitions and normalizations#

The next cell prepares the ingredients used by both low-level estimators.

We work with the following field definitions:

  • data field: \(D\)

  • uniform random field: \(R\)

\[\rho = \frac{1}{V}, \qquad \langle R \rangle = \rho, \qquad \langle RR \rangle = \rho^2, \qquad \langle RRR \rangle = \rho^3\]

The three fields entering the triangle statistic are

\[D_1 = D, \qquad D_2 = D_3 = D @ W_{\rm Sph5}\]

where \(W_{\rm Sph5}\) denotes the spherical smoothing window with radius \(5\,{\rm Mpc}/h\).

Their corresponding fluctuation fields are

\[\Delta D_1 = D_1 - R, \qquad \Delta D_2 = D_2 - R, \qquad \Delta D_3 = D_3 - R\]

The pair terms used in the hierarchical normalization are

\[\xi_{12} = \frac{\langle \Delta D_1 \Delta D_2 \rangle}{\langle RR \rangle}, \qquad \xi_{13} = \frac{\langle \Delta D_1 \Delta D_3 \rangle}{\langle RR \rangle}, \qquad \xi_{23} = \frac{\langle \Delta D_2 \Delta D_3 \rangle}{\langle RR \rangle}\]

From these we build

\[\zeta_{\rm H} = \xi_{12}\xi_{23} + \xi_{13}\xi_{23} + \xi_{12}\xi_{13}, \qquad Q = \zeta / \zeta_{\rm H}\]

So the low-level task in the following cells is: estimate \(\zeta\) with two different center choices, then divide by \(\zeta_{\rm H}\) to obtain the reduced 3PCF.

[10]:

D = SFCField(data_path="./output/quijote8000_snap004_sfc.pkl", threads=8)
rho = 1.0 / D.V
R = rho
RR = rho ** 2
RRR = rho ** 3

win_sph5 = WindowFunc({"type": "sphere", "len_args": {"R": 5}}, D.sfc_info, threads=8)

D1 = D.copy()
D2 = D @ win_sph5
D3 = D2.copy()

deltaD1 = D1 - R
deltaD2 = D2 - R
deltaD3 = D3 - R

n_rot = 20
n_theta = 20
theta_values = np.linspace(0.0, np.pi, n_theta)
mu_values = np.cos(theta_values)

r12, r13 = 20.0, 40.0
r23 = third_side(r12, r13, theta_values)

xi12 = compute_pair_product_at_sample({"s": r12}, deltaD1, deltaD2) / RR
xi13 = compute_pair_product_at_sample({"s": r13}, deltaD1, deltaD3) / RR
xi23 = np.array([compute_pair_product_at_sample({"s": r}, deltaD2, deltaD3) / RR for r in r23])
zeta_H = xi12 * xi23 + xi13 * xi23 + xi12 * xi13

15:18:37 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:18:37 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1

Method 1: particle centers#

In this estimator, the central vertex is anchored on actual particles. The code below samples rotated triangles around those particle centers and accumulates the corresponding triplet product.

The code directly estimates d_delta_dd,

\[d_{\Delta DD}=\langle D_1 \, \Delta D_2 \, \Delta D_3 \rangle .\]

For a uniform \(R_1\), the corresponding random contribution is

\[r_{\Delta DD}=\langle R_1 \, \Delta D_2 \, \Delta D_3 \rangle=\langle R_1 R_2 R_3 \rangle \xi_{23}.\]

Because the central vertex is sampled from particles while the other two vertex fields are fluctuation fields, the reduced three-point term becomes

\[\zeta = \frac{\langle \Delta D_1 \, \Delta D_2 \, \Delta D_3 \rangle}{\langle R_1 R_2 R_3 \rangle} = \frac{\langle D_1 \, \Delta D_2 \, \Delta D_3 \rangle - \langle R_1 \, \Delta D_2 \, \Delta D_3 \rangle}{\langle R_1 R_2 R_3 \rangle} = \frac{\langle D_1 \, \Delta D_2 \, \Delta D_3 \rangle}{\langle R_1 R_2 R_3 \rangle} - \xi_{23}\]

This is why the code computes d_delta_dd / RRR - xi23[i] before dividing by \(\zeta_{\rm H}\).

[11]:

pos1 = D1.get_particle_data()['pos']
pos1_scaled = pos1 * D1.scale_factor
r12_scaled = r12 * D1.scale_factor
r13_scaled = r13 * D1.scale_factor
weight1 = np.ones(pos1_scaled.shape[0])
weight1_sum = weight1.sum()

[12]:

zeta = np.empty_like(theta_values, dtype=np.float64)

for i, mu in enumerate(mu_values):
    d_delta_dd = estimate_triplet_product_particle_centers(
        r12_scaled, r13_scaled, mu,
        pos1_scaled, weight1, weight1_sum, n_rot,
        R, deltaD2.epsilon, deltaD3.epsilon,
        D1.phi_array, D1.L, D1.phi_resolution, D1.phi_support,
        seed_base_rot=43, mu_index=i
        )
    zeta[i] = d_delta_dd / RRR - xi23[i]

Q_pcenter = zeta / zeta_H

Method 2: random box centers#

In this estimator, the triangle center is drawn uniformly from the box. The code below measures the triplet product of the fluctuation fields directly, which makes the random subtraction explicit inside the estimator.

The directly estimated quantity is delta_ddd,

\[\Delta DDD=\langle \Delta D_1 \, \Delta D_2 \, \Delta D_3 \rangle,\]

so the corresponding three-point term is

\[\zeta = \frac{\langle \Delta D_1 \, \Delta D_2 \, \Delta D_3 \rangle}{\langle R_1 R_2 R_3 \rangle}\]

This is the form typically used in the random-center pipeline above.

[13]:

rand1_scaled = random_box_positions(count=1_000_000, box_size=D.L, seed=1000045)
r12_scaled = r12 * D1.scale_factor
r13_scaled = r13 * D1.scale_factor

[14]:

zeta = np.empty_like(theta_values, dtype=np.float64)
for i, mu in enumerate(mu_values):
    delta_ddd = estimate_triplet_product_box_random_centers(
        r12_scaled, r13_scaled, mu,
        rand1_scaled, n_rot,
        deltaD1.epsilon, deltaD2.epsilon, deltaD3.epsilon,
        D1.phi_array, D1.L, D1.phi_resolution, D1.phi_support,
        seed_base_rot=43, mu_index=i
    )
    zeta[i] = delta_ddd / RRR

zeta_H = xi12 * xi23 + xi13 * xi23 + xi12 * xi13
Q_rcenter = zeta / zeta_H

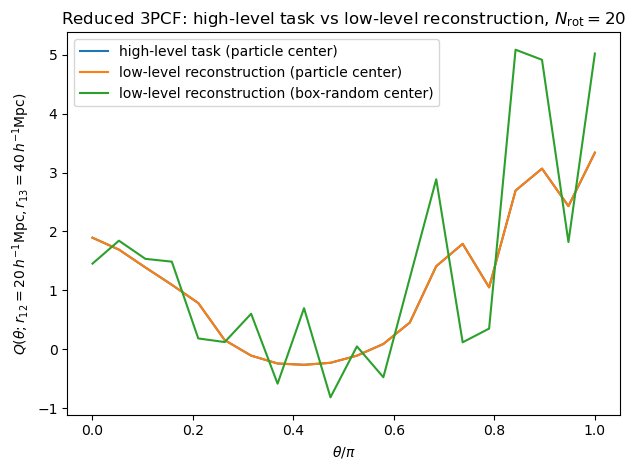

Compare high-level and low-level estimators#

This plot places the notebook-level reconstruction next to the command-line result so that the agreement between the two implementations is easy to inspect.

[15]:

plt.plot(corr3pcf_pcent.theta/np.pi, corr3pcf_pcent.Q, label='high-level task (particle center)')
plt.plot(theta_values/np.pi, Q_pcenter, label='low-level reconstruction (particle center)')
plt.plot(theta_values/np.pi, Q_rcenter, label='low-level reconstruction (box-random center)')

plt.legend()
plt.title(r'Reduced 3PCF: high-level task vs low-level reconstruction, $N_{\rm rot}=20$')
plt.xlabel(r"$\theta/\pi$")
plt.ylabel(r"$Q(\theta; r_{12}=20\,h^{-1}\mathrm{Mpc}, r_{13}=40\,h^{-1}\mathrm{Mpc})$")
plt.tight_layout()
plt.show()
../_images/notebooks_corr3pcf_27_0.png

3. Standard 3PCF diagnostics#

The saved high-sampling runs below test three choices that are independent of the estimator reconstruction above: a uniform-random shortcut versus an explicitly sampled random field, particle versus box-random centers, and uniform sampling in \(\theta\) versus \(\mu=\cos\theta\). The labels report the number of triangle rotations or sampled centers where it is useful for interpreting the residual Monte Carlo scatter.

[16]:

# examples/scripts/run_3pcf.py & examples/configs/param_3pcf_pcenter_nrot1000.yaml
corr3pcf_pcenter_nrot1000 = Corr3PCFData(data_path="./output/quijote8000_snap004_3pcf_pcenter_nrot1000.pkl")

# examples/scripts/run_3pcf.py & examples/configs/param_3pcf_pcenter_nrot1000_mu.yaml
corr3pcf_pcenter_nrot1000_mu = Corr3PCFData(data_path="./output/quijote8000_snap004_3pcf_pcenter_nrot1000_mu.pkl")

# examples/scripts/run_3pcf_pcenter_with_random.py (self-contained two-stage task)
corr3pcf_pcenter_with_random = Corr3PCFData(data_path="./output/quijote8000_snap004_3pcf_pcenter_with_random.pkl")

# examples/scripts/run_3pcf.py & examples/configs/param_3pcf_rcenter_nrot200.yaml
corr3pcf_rcenter_nrot200 = Corr3PCFData(data_path="./output/quijote8000_snap004_3pcf_rcenter_nrot200.pkl")

# examples/scripts/run_3pcf.py & examples/configs/param_3pcf_rcenter_with_random.yaml
corr3pcf_rcenter_with_random = Corr3PCFData(data_path="./output/quijote8000_snap004_3pcf_rcenter_with_random.pkl")

15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_pcenter_nrot1000.pkl <---
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['rrr', 'd_delta_dd', 'r_delta_dd', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_pcenter_nrot1000_mu.pkl <---
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['rrr', 'd_delta_dd', 'r_delta_dd', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_pcenter_with_random.pkl <---
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['rrr', 'd_delta_dd', 'r_delta_dd', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_rcenter_nrot200.pkl <---
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['rrr', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Reading 3PCF data from ---> ./output/quijote8000_snap004_3pcf_rcenter_with_random.pkl <---
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - theta: Num = 20, Min = 0, Max = 3.142
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - mu: Num = 20, Min = -1, Max = 1
15:19:48 - INFO - pyhermes.io.base:Corr3PCFData - Products loaded: ['rrr', 'delta_ddd', 'xi12', 'xi13', 'xi23', 'zeta', 'zeta_H', 'Q']

Random-field treatment and angular sampling#

This comparison separates the uniform-random shortcut from an explicitly sampled random field and also checks whether the angular grid is uniform in \(\theta\) or in \(\mu=\cos\theta\).

[17]:

plt.plot(corr3pcf_pcenter_nrot1000.theta/np.pi, corr3pcf_pcenter_nrot1000.Q, label=r'uniform-random shortcut, $\theta$ grid')
plt.plot(corr3pcf_pcenter_nrot1000_mu.theta/np.pi, corr3pcf_pcenter_nrot1000_mu.Q, label=r'uniform-random shortcut, $\mu$ grid')
plt.plot(corr3pcf_pcenter_with_random.theta/np.pi, corr3pcf_pcenter_with_random.Q, label=r'explicit random field, $\theta$ grid')

plt.legend()
plt.title(r'Particle-center 3PCF: random handling and angular parameterization')
plt.xlabel(r"$\theta/\pi$")
plt.ylabel(r"$Q(\theta; r_{12}=20\,h^{-1}\mathrm{Mpc}, r_{13}=40\,h^{-1}\mathrm{Mpc})$")
plt.tight_layout()
plt.show()
../_images/notebooks_corr3pcf_31_0.png

Center strategy#

The next plot compares particle-centered and box-random-centered estimators. The additional explicit-random curve shows the residual effect of replacing the uniform shortcut with a sampled random field.

[18]:

plt.plot(corr3pcf_pcenter_nrot1000.theta/np.pi, corr3pcf_pcenter_nrot1000.Q, label='particle center, uniform shortcut')
plt.plot(corr3pcf_rcenter_nrot200.theta/np.pi, corr3pcf_rcenter_nrot200.Q, label='box-random center, uniform shortcut')
plt.plot(corr3pcf_rcenter_with_random.theta/np.pi, corr3pcf_rcenter_with_random.Q, label='box-random center, explicit random field')

plt.legend()
plt.title(r'Reduced 3PCF: particle-center vs box-random-center estimators')
plt.xlabel(r"$\theta/\pi$")
plt.ylabel(r"$Q(\theta; r_{12}=20\,h^{-1}\mathrm{Mpc}, r_{13}=40\,h^{-1}\mathrm{Mpc})$")
plt.tight_layout()
plt.savefig(figs_dir / "corr3pcf_center_estimators.png", dpi=200, bbox_inches="tight")
plt.show()
../_images/notebooks_corr3pcf_33_0.png

\(\theta\) and \(\mu\) grids#

Finally, the same particle-centered estimator is displayed as a function of \(\mu\) to expose the different sampling densities produced by uniform \(\theta\) and uniform \(\mu\) grids.

[19]:

plt.plot(corr3pcf_pcenter_nrot1000.mu, corr3pcf_pcenter_nrot1000.Q, label=r'$\theta$ grid')
plt.plot(corr3pcf_pcenter_nrot1000_mu.mu, corr3pcf_pcenter_nrot1000_mu.Q, label=r'$\mu$ grid')

plt.xlabel(r"$\mu$")
plt.ylabel(r"$Q(\mu)$")
plt.title(r'Particle-center 3PCF: $\theta$-grid vs $\mu$-grid sampling')
plt.legend()
plt.tight_layout()
plt.show()
../_images/notebooks_corr3pcf_35_0.png

4. 3PCF multipoles#

The final section switches from direct angular curves to a multipole representation. The cells below load saved outputs to compare two field resolutions at fixed l_max, inspect the normalized multipole products, and verify that the multipoles reconstruct the angular 3PCF.

The saved multipole outputs used below can be produced from a config with this shape:

Corr_3PCF_Multipole:
   sfc_field: "./output/quijote8000_snap004_sfc.pkl"
   random: "uniform"
   window:
      type: "sphere"
      len_args:
         R: 5
   binning_window12:
      type: "shell"
      len_args: {}
      other_args: {}
      mapping:
         R: "r12"
   binning_window13:
      type: "shell"
      len_args: {}
      other_args: {}
      mapping:
         R: "r13"
   sampling:
      r12: 20.0
      r13: 40.0
   l_max: 7
   execution_mode: "pair_mpi"
   products: "zeta_l"
   threads: 4
   fout_path: "./output/quijote8000_snap004_3pcf_multipole_lmax7.pkl"

Compare field resolution J at fixed l_max=14#

This comparison holds l_max=14 fixed and changes only the field resolution from J=8 to J=9, isolating the effect of the multiresolution representation on the recovered multipole spectrum.

[20]:

# examples/scripts/run_3pcf_multipole.py & examples/configs/param_3pcf_multipole_lmax14.yaml
corr3pcf_mul_j8_lmax14 = Corr3PCFMultipoleData(data_path="./output/quijote8000_snap004_3pcf_multipole_lmax14.pkl")

# examples/scripts/run_3pcf_multipole.py & examples/configs/param_3pcf_multipole_J9_lmax14.yaml
corr3pcf_mul_j9_lmax14 = Corr3PCFMultipoleData(data_path="./output/quijote8000_snap004_3pcf_multipole_J9_lmax14.pkl")

plt.plot(corr3pcf_mul_j8_lmax14.l, corr3pcf_mul_j8_lmax14.zeta_l[0], label=r'$J=8$')
plt.plot(corr3pcf_mul_j9_lmax14.l, corr3pcf_mul_j9_lmax14.zeta_l[0], label=r'$J=9$')

plt.title(r'3PCF multipoles: dependence on field resolution $J$ ($l_{\max}=14$)')
plt.xlabel(r'$\ell$', fontsize=15)
plt.ylabel(r'$\zeta_\ell(r_{12}=20\,h^{-1}\mathrm{Mpc}, r_{13}=40\,h^{-1}\mathrm{Mpc})$', fontsize=15)
plt.grid()
plt.legend()
plt.tight_layout()
plt.savefig(figs_dir / "corr3pcf_multipole_resolution.png", dpi=200, bbox_inches="tight")
plt.show()

15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - Reading 3PCF Multipole data from ---> ./output/quijote8000_snap004_3pcf_multipole_lmax14.pkl <---
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - l: Num = 15, Min = 0, Max = 14
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - Products loaded: ['rrr_l', 'delta_ddd_l', 'zeta_l', 'zeta_condition']
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - Reading 3PCF Multipole data from ---> ./output/quijote8000_snap004_3pcf_multipole_J9_lmax14.pkl <---
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - l: Num = 15, Min = 0, Max = 14
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - Products loaded: ['rrr_l', 'delta_ddd_l', 'zeta_l', 'zeta_condition']
../_images/notebooks_corr3pcf_38_1.png

Inspect normalized raw multipole components#

The next plot breaks the multipole output into its raw building blocks, all normalized by \(\rho^3\), so it is easier to compare the relative scale of RRR, DDD, and \((\Delta D)^3\)-type terms.

[21]:

# examples/scripts/run_3pcf_multipole.py & examples/configs/param_3pcf_multipole_lmax14_with_random.yaml
corr3pcf_mul_j8_lmax14_with_random = Corr3PCFMultipoleData(data_path="./output/quijote8000_snap004_3pcf_multipole_lmax14_with_random.pkl")
l = corr3pcf_mul_j8_lmax14_with_random.l
rrr_l = corr3pcf_mul_j8_lmax14_with_random.rrr_l[0]
ddd_l = corr3pcf_mul_j8_lmax14_with_random.ddd_l[0]
delta_ddd_l = corr3pcf_mul_j8_lmax14_with_random.delta_ddd_l[0]

D = SFCField(data_path='./output/quijote8000_snap004_sfc.pkl')
rho = 1 / D.V

15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - Reading 3PCF Multipole data from ---> ./output/quijote8000_snap004_3pcf_multipole_lmax14_with_random.pkl <---
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - l: Num = 15, Min = 0, Max = 14
15:19:49 - INFO - pyhermes.io.base:Corr3PCFMultipoleData - Products loaded: ['ddd_l', 'rrr_l', 'delta_ddd_l', 'zeta_l', 'zeta_condition']
15:19:49 - INFO - pyhermes.io.base:SFCField - Reading SFCField data from ---> ./output/quijote8000_snap004_sfc.pkl <---
15:19:49 - INFO - pyhermes.io.base:SFCField - epsilon: Shape(256, 256, 256), Min = -3.215e-06, Max = 1.343e-05, Mean = 5.96e-08, Sum = 1

[22]:

lmin, lmax = 0, 10
plt.plot(l[lmin:lmax+1], rrr_l[lmin:lmax+1]/rho**3, label=r'$\langle RRR \rangle_\ell$', ls=":")
plt.plot(l[lmin:lmax+1], ddd_l[lmin:lmax+1]/rho**3, label=r'$DDD_\ell$', ls="-")
plt.plot(l[lmin:lmax+1], delta_ddd_l[lmin:lmax+1]/rho**3, label=r'$\langle (\Delta D)^3 \rangle_\ell$', ls="-.")

plt.title(r'3PCF multipoles: normalized raw components ($J=8$, $l_{\max}=14$)')
plt.xlabel(r'$\ell$', fontsize=15)
plt.ylabel(r'normalized amplitude $(/\rho^3)$', fontsize=15)
plt.grid()
plt.legend()
plt.tight_layout()
plt.show()
../_images/notebooks_corr3pcf_41_0.png

Consistency check: multipoles and angular 3PCF#

For the uniform-random shortcut outputs used here, the computed zeta_l multipoles stored in the output can be read as Legendre coefficients in the expansion

\[\zeta(\theta; r_{12}, r_{13}) = \sum_{\ell=0}^{\ell_{\max}} \zeta_\ell(r_{12}, r_{13}) P_\ell(\cos\theta).\]

The primary check below therefore reconstructs the angular curve from the multipoles and overlays it with the direct standard-3PCF measurements. The particle-center curve uses n_part = 406728 halo centers and n_rot = 1000; the box-random-center curve uses n_rand = 8000000 random centers and n_rot = 200. The second panel projects the direct angular curves back to low-order multipoles as a diagnostic; because the saved standard 3PCF curves use a finite angular grid and finite random rotations, this projection should not be over-interpreted at high ell.

[23]:

def reconstruct_zeta_from_multipoles(multipole_data, theta):
    ell = np.asarray(multipole_data.l, dtype=int)
    coeff = np.zeros(ell.max() + 1, dtype=np.float64)
    coeff[ell] = multipole_data.zeta_l[0]
    return np.polynomial.legendre.legval(np.cos(theta), coeff)

def project_zeta_to_multipoles(theta, zeta, ell_values):
    mu = np.cos(np.asarray(theta, dtype=np.float64))
    zeta = np.asarray(zeta, dtype=np.float64)
    order = np.argsort(mu)
    mu = mu[order]
    zeta = zeta[order]
    trapz = getattr(np, "trapezoid", np.trapz)

    projected = []
    for ell in np.asarray(ell_values, dtype=int):
        basis = np.zeros(ell + 1, dtype=np.float64)
        basis[ell] = 1.0
        p_ell = np.polynomial.legendre.legval(mu, basis)
        projected.append(0.5 * (2 * ell + 1) * trapz(zeta * p_ell, mu))
    return np.asarray(projected)

theta = corr3pcf_pcenter_nrot1000.theta
zeta_from_l = reconstruct_zeta_from_multipoles(corr3pcf_mul_j8_lmax14, theta)
zeta_from_l_rcenter_grid = reconstruct_zeta_from_multipoles(corr3pcf_mul_j8_lmax14, corr3pcf_rcenter_nrot200.theta)

def relative_rms(reference, comparison):
    reference = np.asarray(reference, dtype=np.float64)
    comparison = np.asarray(comparison, dtype=np.float64)
    scale = np.sqrt(np.mean(reference**2))
    return np.sqrt(np.mean((comparison - reference)**2)) / scale if scale > 0 else np.nan

print(f"relative RMS vs particle-center zeta: {relative_rms(corr3pcf_pcenter_nrot1000.zeta, zeta_from_l):.3e}")
print(f"relative RMS vs box-random-center zeta: {relative_rms(corr3pcf_rcenter_nrot200.zeta, zeta_from_l_rcenter_grid):.3e}")

relative RMS vs particle-center zeta: 3.768e-02
relative RMS vs box-random-center zeta: 7.742e-02

[24]:

ell_compare = corr3pcf_mul_j8_lmax14.l[corr3pcf_mul_j8_lmax14.l <= 7]
zeta_l_projected_pcenter = project_zeta_to_multipoles(
    corr3pcf_pcenter_nrot1000.theta, corr3pcf_pcenter_nrot1000.zeta, ell_compare
)
zeta_l_projected_rcenter = project_zeta_to_multipoles(
    corr3pcf_rcenter_nrot200.theta, corr3pcf_rcenter_nrot200.zeta, ell_compare
)
zeta_l_multipole = corr3pcf_mul_j8_lmax14.zeta_l[0][np.isin(corr3pcf_mul_j8_lmax14.l, ell_compare)]

with plt.rc_context({
    "font.family": "serif",
    "font.size": 16,
    "axes.labelsize": 17,
    "axes.titlesize": 17,
    "legend.fontsize": 12,
    "xtick.labelsize": 14,
    "ytick.labelsize": 14,
    "axes.grid": False,
}):
    fig, axes = plt.subplots(1, 2, figsize=(12.0, 4.6))

    axes[0].plot(
        corr3pcf_pcenter_nrot1000.theta / np.pi,
        corr3pcf_pcenter_nrot1000.zeta,
        label=r"particle centre",
        color="#1f77b4",
        lw=2.2,
    )
    axes[0].plot(
        corr3pcf_rcenter_nrot200.theta / np.pi,
        corr3pcf_rcenter_nrot200.zeta,
        label=r"random centre",
        color="#2ca02c",
        lw=2.2,
    )
    axes[0].plot(
        theta / np.pi,
        zeta_from_l,
        "--",
        label=r"multipole rec.",
        color="#ff7f0e",
        lw=2.2,
    )
    axes[0].set_xlabel(r"$\theta/\pi$")
    axes[0].set_ylabel(r"$\zeta(\theta)$")
    axes[0].set_title(r"Angular reconstruction from $\zeta_\ell$")
    axes[0].legend(frameon=False)

    axes[1].plot(
        ell_compare,
        zeta_l_multipole,
        "o-",
        label=r"computed $\zeta_\ell$",
        color="#1f77b4",
        lw=2.2,
        ms=4.5,
    )
    axes[1].plot(
        ell_compare,
        zeta_l_projected_pcenter,
        "s--",
        label=r"particle proj.",
        color="#ff7f0e",
        lw=2.2,
        ms=4.5,
    )
    axes[1].plot(
        ell_compare,
        zeta_l_projected_rcenter,
        "^--",
        label=r"random proj.",
        color="#2ca02c",
        lw=2.2,
        ms=4.5,
    )
    axes[1].set_xlabel(r"$\ell$")
    axes[1].set_ylabel(r"$\zeta_\ell$")
    axes[1].set_title(r"Low-$\ell$ projection diagnostic")
    axes[1].legend(frameon=False)

    for ax in axes:
        ax.grid(False)
        ax.tick_params(direction="in", top=True, right=True, width=1.0, length=4)
        for spine in ax.spines.values():
            spine.set_linewidth(1.0)

    fig.tight_layout(w_pad=1.4)
    plt.savefig(figs_dir / "corr3pcf_multipole_standard_consistency.png", dpi=240, bbox_inches="tight")
    plt.show()
../_images/notebooks_corr3pcf_44_0.png

Tutorial map complete#

This is the final statistics notebook: it extends the corr2pcf.ipynb field-window workflow from pairs to triangles and multipoles. Return to physical_fields.ipynb for the independent physical-operator branch, or use the YAML and scripts referenced above as starting points for production calculations.
